Microsoft issues porting guide to help migrate apps from Silverlight to the Universal Windows Platform

Reading time icon 3 min. read

Readers help support Windows Report. We may get a commission if you buy through our links. Tooltip Icon

Read our disclosure page to find out how can you help Windows Report sustain the editorial team Read more

It seems like every chance they get, Microsoft reminds developers that converting to the Universal Windows Platform is the best choice for most apps. They have gone out of their way to make step-by-step instruction guides to ease new apps onto the UWP and today’s blog from the Windows App Team is no different.

The Windows Dev Center has issued a porting guide, with significant detail, to help you manually migrate Windows Phone Silverlight apps over to UWP. However, the Silverlight to Windows 10 bridge can help you circumvent up to 80% of the work by converting the code automatically.

Step One: Download the Bridge

You can easily find the Silverlight to Windows 10 bridge on Mobilize.NET, along with the Visual Studio 2015 (with at least Update 1) that can be downloaded for free.

Step Two: Run the Tool

Running the Windows Phone Silverlight-to-UWP conversion tool will take care converting your app’s manifest files to the new format. The only input needed to run the tool is the path of the project file you want to convert to UWP and the directory of where you want the newly created UWP files to be saved.

The Silverlight to USP conversion tool is very simple to use.
The Silverlight to USP conversion tool is very simple to use.

Step Three: Troubleshooting the missing DLLs

The most common cause of missing DLLs is the result of third party libraries being used in the Silverlight app. If the codes reference to DLLs that haven’t been migrated to UWP, it will cause unrecognized namespaces to crop up in your conversion. The best way to fix the missing DLL issues is to manually replace them with similar standard controls.

Step Four: Troubleshooting unconverted Silverlight code

While the bridge tool for Silverlight to UWP has approximately 2,300 mappings for API and XAMLs, sometimes it’s still not enough to cover every case of Silverlight’s coding. When it comes to these hiccups between the conversion process, you can consult the namespace and class mappings resource that will help identify code that doesn’t have a UWP counterpart. If not, then you can decide whether you want to alter the unconverted code to use a different UWP class or create a helper class to wrap the unconverted class code.

Step Five: Troubleshooting controls and events

Your app is almost converted, but some mappings are not working as they should in the Universal Windows Platform. The controls behaving different could be adjusted by defining a field for the control and assigning it the control’s Loaded event. Using an MVVM approach by binding to decouple controls is also an option.

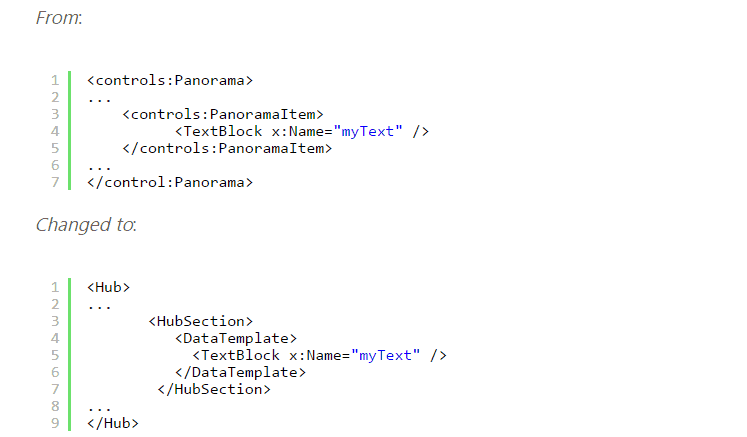

Windows Phone Panorama control had to be replaced by Hub internally while being converted to a UWP.

Since the Silverlight Bridge to Window tool is still in developer preview, it’s not ready to handle all of the conversions and requires some finesse. Even so, it is significantly more efficient than porting apps manually. Converting your Windows Phone Silverlight app to the Universal Windows Platform will not only enable you to have a longer reach, but doing so will also bring a new audience to your product. With the UWP, apps are able to be accessed across many more devices to ultimately enhance your developing experience.
